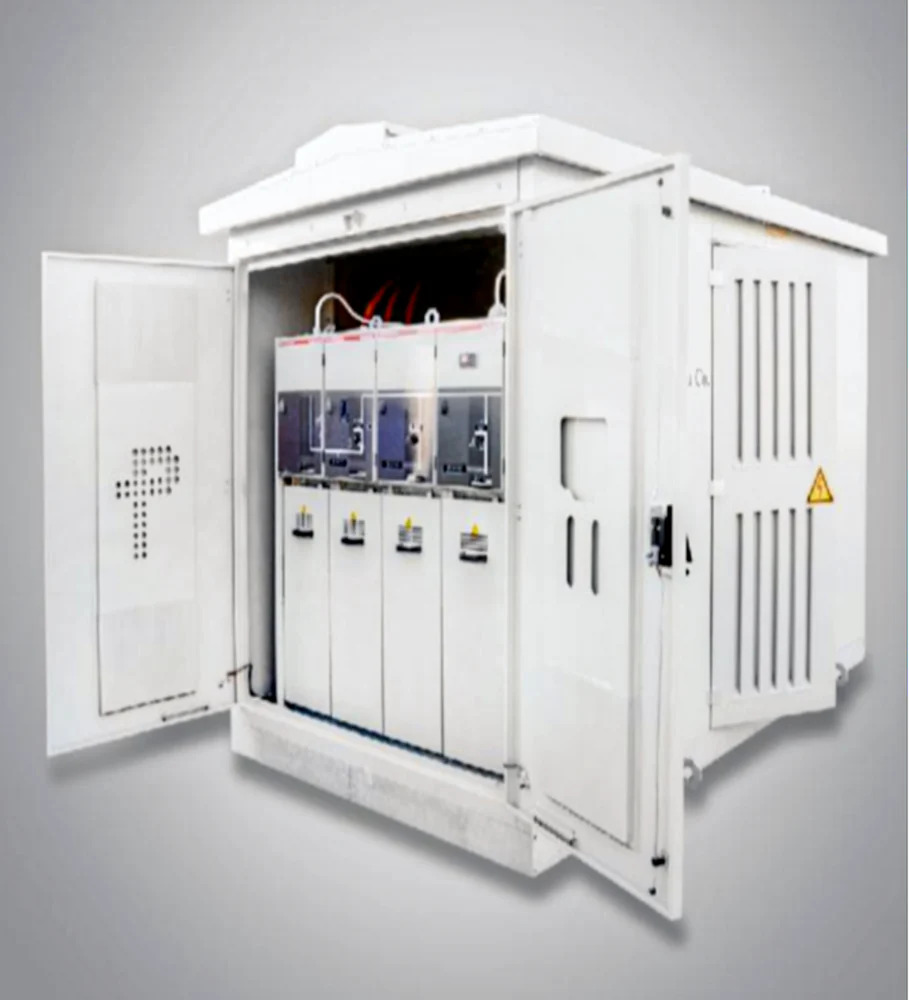

Package substation (CSS/PSS/USS) comprises of various substation equipments housed inside a metal enclosure for outdoor installation.

• Reference standard IEC 62271-202. Rated Voltage 12 kV. Rated power
• frequency withstand voltage on MV side 28 KV RMS for 1 min.
• Rated lightning impulse withstand voltage 75 kV.
• Transformer rating up to 2000KVA.
• Ambient temperature up to 50°C.
• Standard Color RAL 7032 (other colors on request).
• Duty Outdoor/Indoor.
• Enclosure degree of protection for Transformer compartment IP23, MV/LV. compartment IP54.
• Type of ventilation Natural/Forced air.
• MV compartment consisting of a vacuum Circuit Breaker (VCB) or a Ring Main Unit (RMU).
• A step down transformer (X'MER) either Oil Cooled or dry type.
• Low Voltage (LV) compartment consisting of Incoming switchgear and Outgoing switchgear having ACB/MCCB/Switch fuse unit.
• This can be customized as per the requirement.
• The main advantage of an USS is its compactness which economizes on space & eliminates civil construction. It is factory assembled, duly tested and delivered in ready to use condition. The user needs to connect only HT/LT cables.

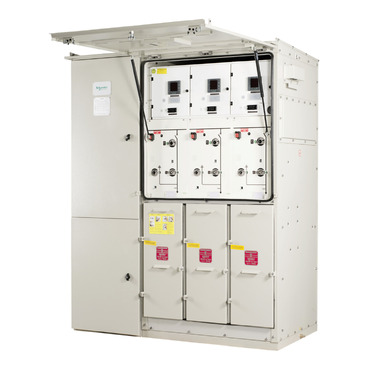

Ring Main Unit (RMU)

• SF6 GAS Insulated Switchgear upto 24kV.
• Ref. Std. IEC 62271-200/IEC-62271-1.
• S.S. Tank and cable boxes are fully internal arc tested for 21kA for 1 sec (AFLR category)
• Manual/Motorized.
• With SCADA Version.
• Outdoor/Indoor.
• Extensible/Non extensible.
• With or without metering.
• With or Without Transformer Protection.

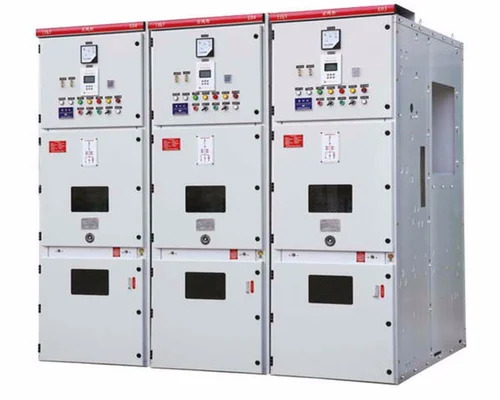

11/33 KV HT VCB PANEL

The 11/33 kV HT VCB (High Tension Vacuum Circuit Breaker) Panel is a fully compartmentalized, metal-clad switchgear unit designed for medium voltage power distribution and protection. It is engineered to control, protect, and isolate electrical equipment in substations and industrial power systems operating at 11 kV or 33 kV levels. The panel incorporates a vacuum circuit breaker as the main switching device, providing safe and reliable interruption of fault currents without arc re-ignition. It is suitable for indoor or outdoor installation, and is built with air-insulated technology, ensuring long operational life, reduced maintenance, and safe manual or remote operation. Each panel is equipped with numerical protection relays, metering units, interlocks, and safety features as per IEC/IS standards, ensuring comprehensive system protection, real-time monitoring, and operational safety.

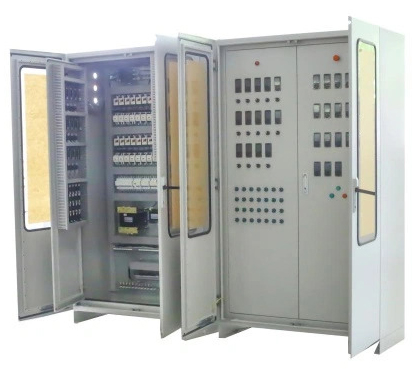

RTU Panel Make Synergy System & Solutions

‘HUSKYTM RTU 6049-E70 is Synergy Systems & Solutions' offering for data acquisition and control solutions in energy generation, transportation, and distribution systems. RTU 6049-E70 has a large installation base of more than 1000 locations in Railways, EHV sub-stations, solar and wind farms, oil & gas pipelines. The RTU design incorporates latest technology to achieve high-end performance and reliability. HUSKY RTU 6049-E70 has been designed to address data acquisition and control requirements of various industry segments. The RTU follows a scalable architecture that's expandable while maintaining flexibility and adaptability to suit different application scenarios.

1500 KVAR Capacitor bank (Indoor & Outdoor)

The rating of Automatic Capacitor Bank shall be comprise of 15/100 KVAR units of three separate unit of 300 KVAR, 600KVAR and 600 KVAR with steps for on/off or 300, 600, 900, 1200, 1500 KVAR have three switches at 11KV 3 Ph 50 HZ neutral solidly grounded system and controlled with suitable vacuum circuit breaker.

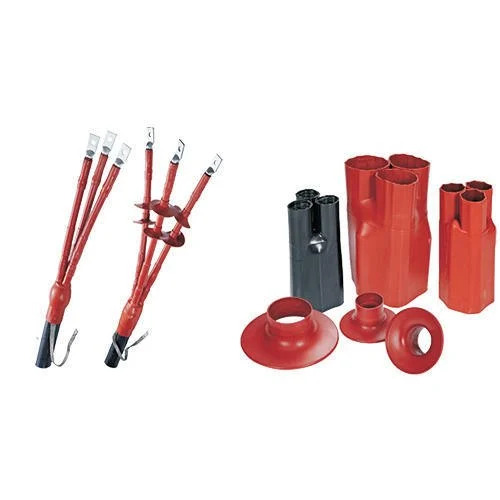

Heat Shrink Technology

Heat Shrink Technology offers complete range of cable jointing & termination kits for XLPE, PILC, PVC & EPR Cables from 1.1kV to 36kV voltage grades. The kits consist of heat shrinkable tubes, mastics, moulded parts, mastics & other accessories for making a complete termination/splice:

Features

Excellent thermal aging properties & Best-in-class weather/chemical resistance

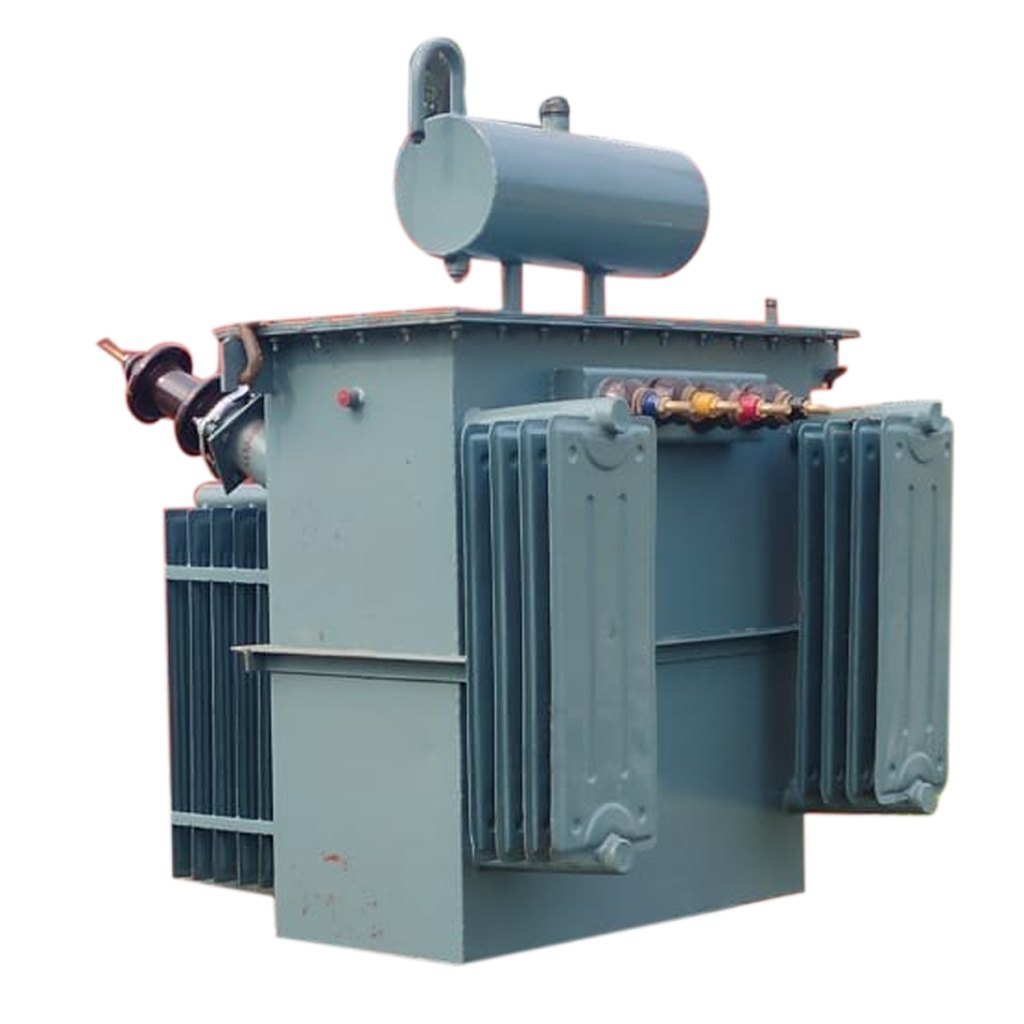

Power Transformer & Distribution Transformer

Capacity: 25 KVA TO 20 MVA

• Ratings: 3 phase upto 66 KV 20 MVA & 1 phase upto 33 KV 167kVA. Frequency: 50/60 Hz.
• Applicable Standards IS:1180, IS:2026, IEC:60076, ANSI 57, BS, SANS.
• Class of Insulation: A/B.
• Cooling: ONAN/ONAF.
• Vector Groups: Any as per customer requirement like Dyn11, Yzn11, Dd0, etc.
• Insulating Fluid: Mineral Oil / Silicon Oil, both inhibited & inhibited, as per IS/[EC/ANSI/BS/SANS Standard].
• Biodegradable Ester Filled Transformers also offered.
• Standard Accessories as per customer specifications.

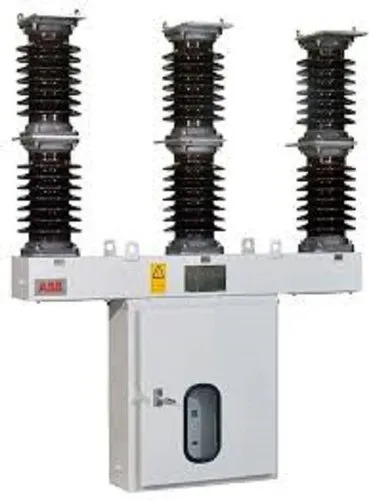

Vacuum Circuit Breaker

• Virtually Maintenance Free.
• High Availability Through Spring Charge Spring Operated Mechanism.
• Single Unit - Easy to Transport & Ready to Install.
• Simple & Safe to Operate.
• Modular Construction for Ease to Maintain.
• Compact & Rugged Design for Outdoor Application.
• Well Proven Vacuum Interrupters for Switching Functions.
• Long Electrical & Mechanical Life.
• Adequate Ground & Sectional Clearances as Required.
• Suitable for Rapid Auto-Reclosing Duty.
• Fully Type Tested at NABL Accredited Lab such as CPRI & ERDA As Per Latest IEC 62271-100, IEC 62271-1 & IS 13118.
• Type Tested for Class M2 (10,000 Operation).
• Specially Type Tested for Seismic Test at 0.6g.
• Compatible for Remote & SCADA Operations.
• Mechanical On/Off & Spring Charged Indications Visible Without Opening The Front Door.
• Sealed Poles to Prevent Ingress of Moisture.
• FrontAccess to Operating Mechanism.
